PORTFOLIO
For very high temperatures designed to protect threaded parts during powder coating and e-coating.
Strong durable, available in many sizes and colors. Put you logo on them for free

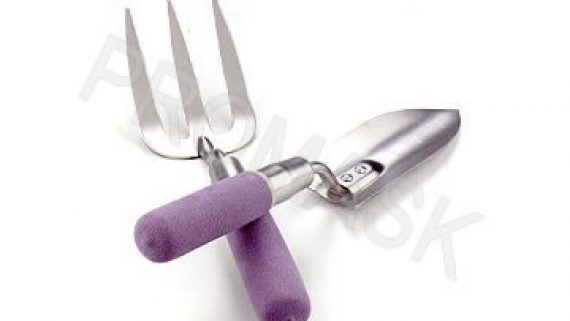

No tears soft rubber grips. Available in your own color with different finish
High temperature Silicone up to 300°C. Can be manufactured in FDA food grade approved in any color.

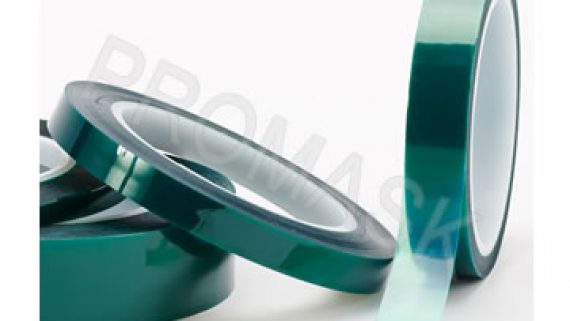

Temperature up to 210°C. No glue residue left. Ideal for masking in powder coating and glass splicing
Ideal for masking in painting, glass lamination, and masking for integrated circuits. Operate with temperatures up to 350°C
Resist to temperatures up to 210°C. Ideal for powder coating and glass lamination. Die cut shapes to your specs
Caps for protection of threads, studs and connectors. Excellent insulation for moisture weather and chemicals.
Ideal for most plating and anodizing applications due to their excellent resistance to chemicals.

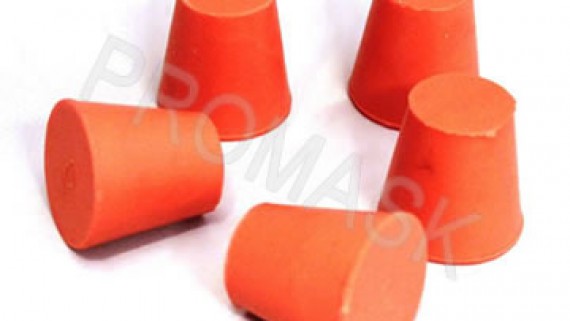

Designed to provide tight seals on both ends of threaded and non-threaded through holes.
Available in many sizes and custom colors. Choose your lengths and add your logo.

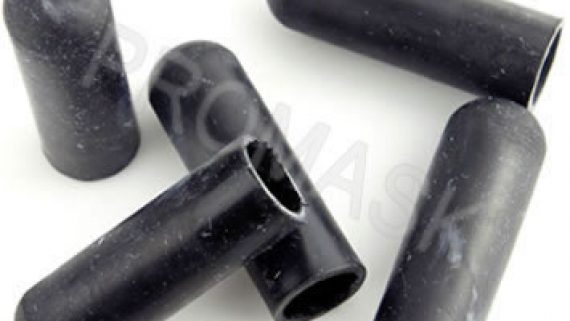

Used to cover tubes, threaded parts, and studs during plating, anodizing, and powder coating.

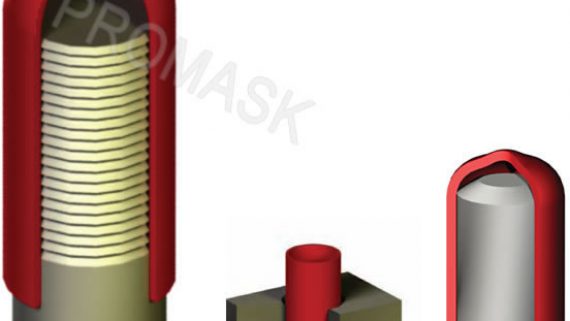

Promask’s stabilized silicone caps are ideal to protect studs and threaded parts during powder coating, cataphoresis, e-coating.

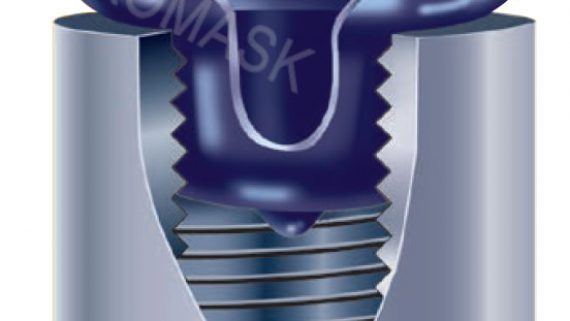

Designed specifically to seal threaded holes from dust and possible damages during manufacturing and shipping.

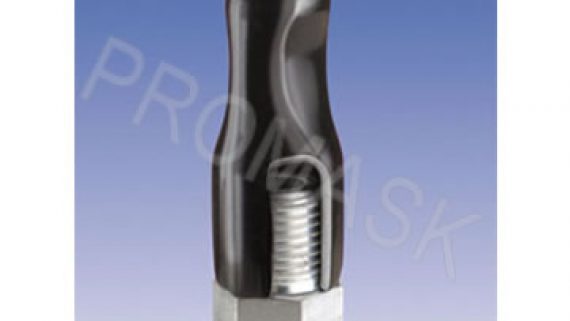

Ergonomically designed Grab Tabs have a user friendly bowed surface. Caps go on snug and stay put for a superior seal.
Easy to apply and ideal to protect your products from any kind of contamination.
-
CODICE
PRODOTTOdiametro interno
ø A (mm)diametro esterno
ø B (mm)lunghezza interna
L (mm)PER filetto
(indicativo)Quantità
minimaPEC-0020-0500 0.51 3.56 12.7 M1 1000 PEC-0037-0500 0.94 2.54 12.7 1000 PEC-0040-0750 1.02 0.17 19.05 1000 PEC-0062-0750 1.57 4.62 19.05 M2 1000 PEC-0070-1000 1.78 4.83 25.4 1000 PEC-0093-0500 2.36 4.95 12.7 M3 1000 PEC-0093-1000 2.36 5.41 25.4 1000 PEC-0100-1000 2.54 5.59 25.4 1000 PEC-0109-1000 2.77 5.82 25.4 1000 PEC-0125-1000 3.18 6.22 25.4 M4 1000 PEC-0137-1000 3.48 6.53 25.4 1000 PEC-0140-1000 3.56 6.73 25.4 1000 PEC-0148-1000 3.76 6.81 25.4 1000 PEC-0156-1000 3.96 7.01 25.4 1000 PEC-0164-1000 4.17 7.42 25.4 M5 1000 PEC-0172-1000 4.37 7.42 25.4 1000 PEC-0180-1000 4.57 7.11 25.4 1000 PEC-0218-1000 5.54 8.59 25.4 M6 1000 PEC-0223-1000 5.66 8.71 25.4 1000 PEC-0234-1000 5.94 8.99 25.4 1000 PEC-0250-1000 6.35 9.4 25.4 M7 1000 PEC-0281-1000 7.14 10.19 25.4 M8 1000 PEC-0295-1000 7.49 10.67 25.4 1000 PEC-0312-1000 7.92 10.97 25.4 1000 PEC-0340-1000 8.64 11.68 25.4 M9 1000 PEC-0343-1000 8.71 11.76 25.4 1000 PEC-0355-1500 9.02 12.07 38.1 1000 PEC-0375-1000 9.53 12.57 25.4 M10 1000 PEC-0375-1500 9.53 12.57 38.1 1000 PEC-0406-1000 10.31 13.36 25.4 M11 1000 PEC-0437-1000 11.1 14.15 25.4 M12 1000 PEC-0456-1500 11.58 14.63 38.1 500 PEC-0468-1500 11.89 14.94 38.1 500 PEC-0480-1500 12.19 15.24 38.1 M13 500 PEC-0500-1500 12.7 15.75 38.1 500 PEC-0535-1500 13.59 16.64 38.1 M14 500 PEC-0562-1500 14.27 17.32 38.1 M15 500 PEC-0600-1500 15.24 18.29 38.1 M16-17 500 PEC-0625-1500 15.88 18.92 38.1 500 PEC-0468-1000 17.27 20.32 25.4 M18 500 PEC-0687-1500 17.45 20.5 38.1 500 PEC-0730-1500 18.54 21.59 38.1 M19 500 PEC-0750-1500 19.05 22.1 38.1 M20 200 PEC-0812-1500 20.62 23.67 38.1 M 21-22 200 PEC-0875-1500 22.23 25.27 38.1 M23-24 200 PEC-0937-1500 23.8 26.85 38.1 M25 200 PEC-0970-1500 24.64 27.81 38.1 250 PEC-1000-1500 25.4 28.45 38.1 M26-27 200 PEC-1000-2000 25.4 28.45 50.8 200 PEC-1062-1500 26.97 30.02 38.1 M28 200 PEC-1125-1500 28.58 31.62 38.1 M29-30 100 PEC-1187-1500 30.15 33.20 38.1 M31-32 100 PEC-1250-1500 31.75 34.80 38.1 M33-35 100 PEC-1350-1500 34.29 37.34 38.1 100 PEC-1375-1500 34.93 37.97 38.1 M35-38 100 PEC-1500-1500 38.1 41.15 38.1 M39-44 100 PEC-1625-1500 41.28 44.32 38.1 100 PEC-1750-1500 44.45 47.5 38.1 M45-51 100 PEC-1875-1500 47.63 50.67 38.1 100 PEC-2000-2000 50.8 53.85 50.8 M52-55 100 PEC-2500-1500 63.5 66.55 38.1 100 Error: Please insert a correct id when using "the_content" shortcode
